Battery Connector agv system recharge station AGV-Solar 60V 50a agv charging pad contact charging

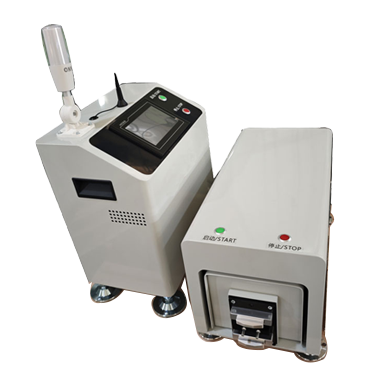

AGV-Solar series intelligent charger adopts the modular design of high frequency soft switch and DSP digital combination, which has high conversion efficiency and high power factor. Through the main circuit module designed by parameter optimization, the continuous adjustable charging current is provided for various AGV vehicles. Intelligent charging is adopted by wireless WiFi or infrared diffuse reflection, infrared radiation, etc. the charging process is fully automatic. It has many communication interfaces, which can exchange data with most lithium battery BMS and upper computer.
The side is equipped with automatic expansion mechanism, which is convenient and fast to install; It is compact in size, redundant parallel output of multiple charging modules, and has simple structure, safe and reliable.
Charger is equipped with 7-inch touch screen, which can realize charging process control, charging status display, charging data record and fault information recording function. And open the professional configuration interface, allowing high-end customers to configure charging curve according to their own needs.

Main functions of charger

1,Charging station is integrated design, with automatic telescopic mechanism, fast and convenient installation (also split type)
2,Third party equipment installation space is reserved to provide system access capability.
3,The modular design can be applied to all kinds of AGV solutions.
4,With short circuit, over-voltage, over-current, over temperature and other protection functions.
5,It has both automatic charging and manual charging functions.
6,With dry contact, can, Ethernet, RS485, WiFi and other communication interfaces.
7,The management background can query the real-time data of charger through CAN, RS485, WiFi and other data interfaces.
